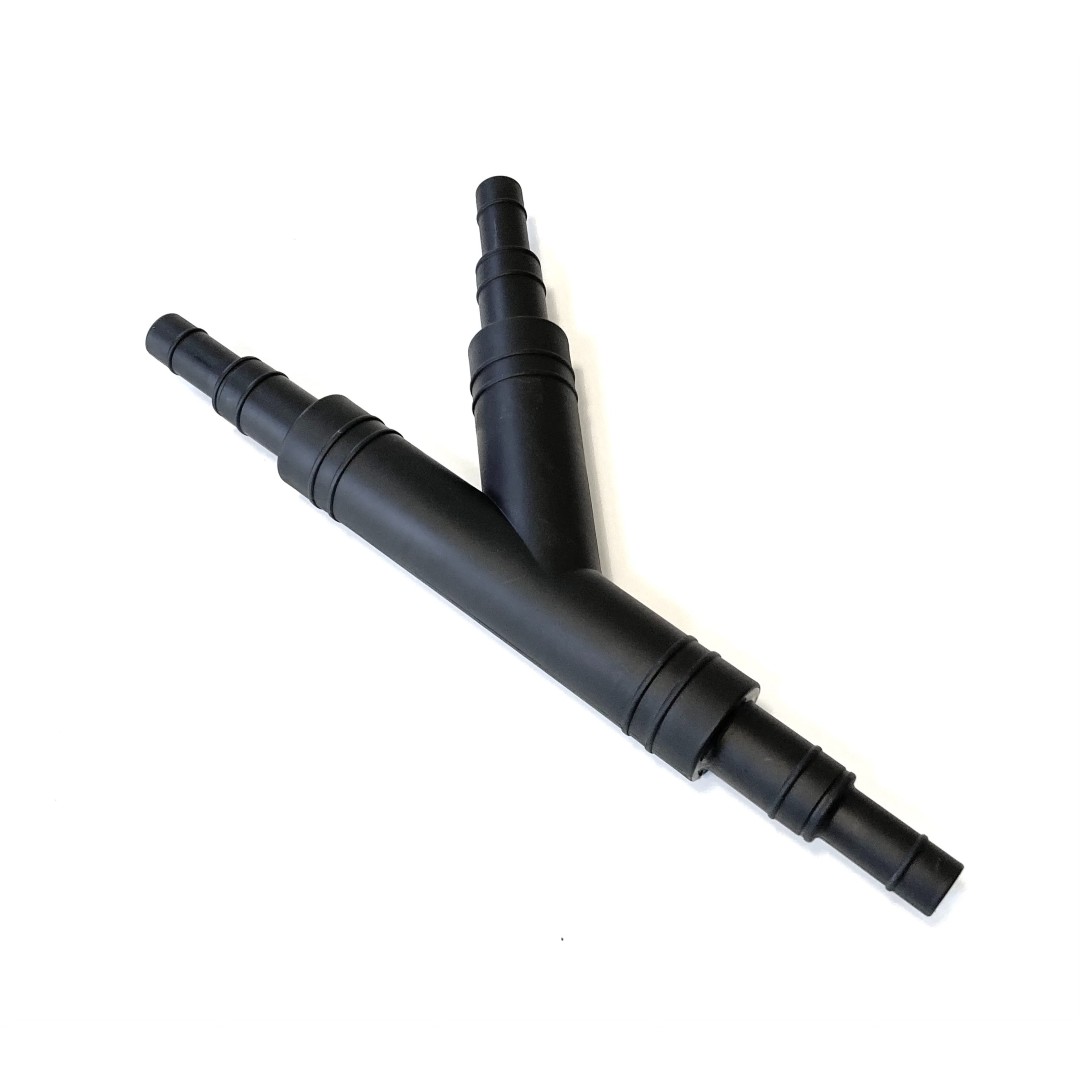

This is a new Water Manifold has been carefully designed to reduce the weight and cost associated with traditionally fabricated water system manifolds.
The complete Y-Piece operates with hose sizes of 3/4″, 1″ and 1 1/2″ and is designed to simply cut it down to size.

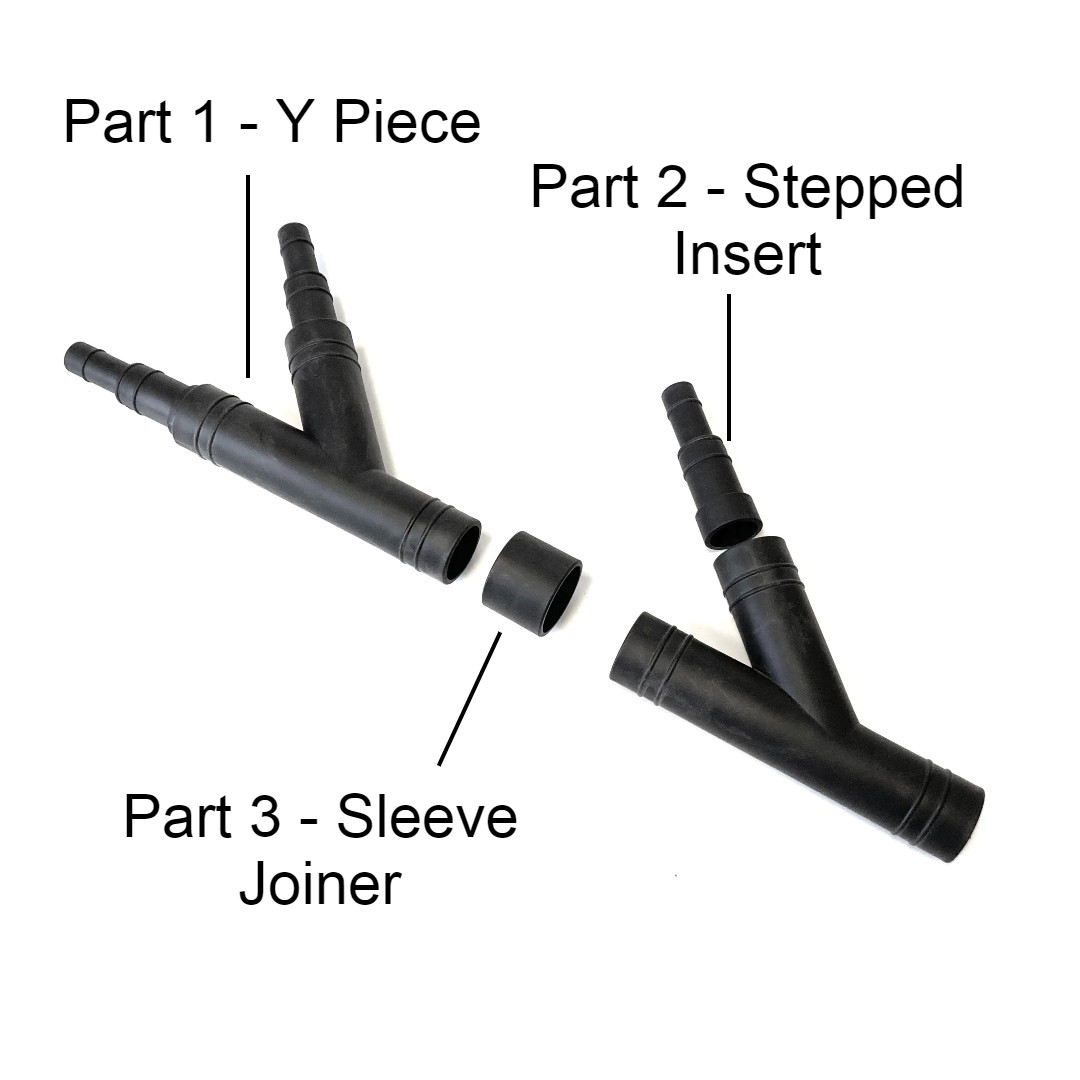

Alternatively, you can make up your own system by attaching any of the three components together as required using an appropriate adhesive or plastic weld.
Designed to take double Jubilee Clips.
Data Sheet.
MATERIAL: Polypropylene 3015 Impact Copolymer.
Characteristics;
– High Impact strength.
– Excellent resistance to low.temp. Brittleness.
– Good stiffness.
Properties;
Melt Index 2 g/10min ISO1133
Density 0.90 g/cm3 ISO1183
Melting Point —– DSC
Heat Deflection Point 110c ISO75
Viacat Softening Temp. 145c ISO306
Tensile Strength at Yield 280 Kg/cm2 ISO527
Tensile Elongation at Break 450% ISO527
Rockwell Hardness 95 (R-Scale) ISO2039
Flexural Modulus 11’200 Kg/cm2 ISO178
IZOD Impact Strength 50 Kg.cm/cm notch ISO180 @ 23c
13 Kg.cm/cm notch ISO180 @ -20c
Mould Shrinkage 1.3 / 1.7% FPC Method.
The details given in this spec sheet are standard value but not specification guaranteed.
Yungsox 3015 resin meets FDA requirements in code of regulations 21 CFR177.1520 for food contact.
Yungsox 3015 is certificated with UL94HP – E216959
| Options | Y-Piece Main Body, Y-Piece Sleeve Joiner, Y-Piece Stepped Insert, Y-Piece Water Manifold |
|---|
£2.49 - £6.24
