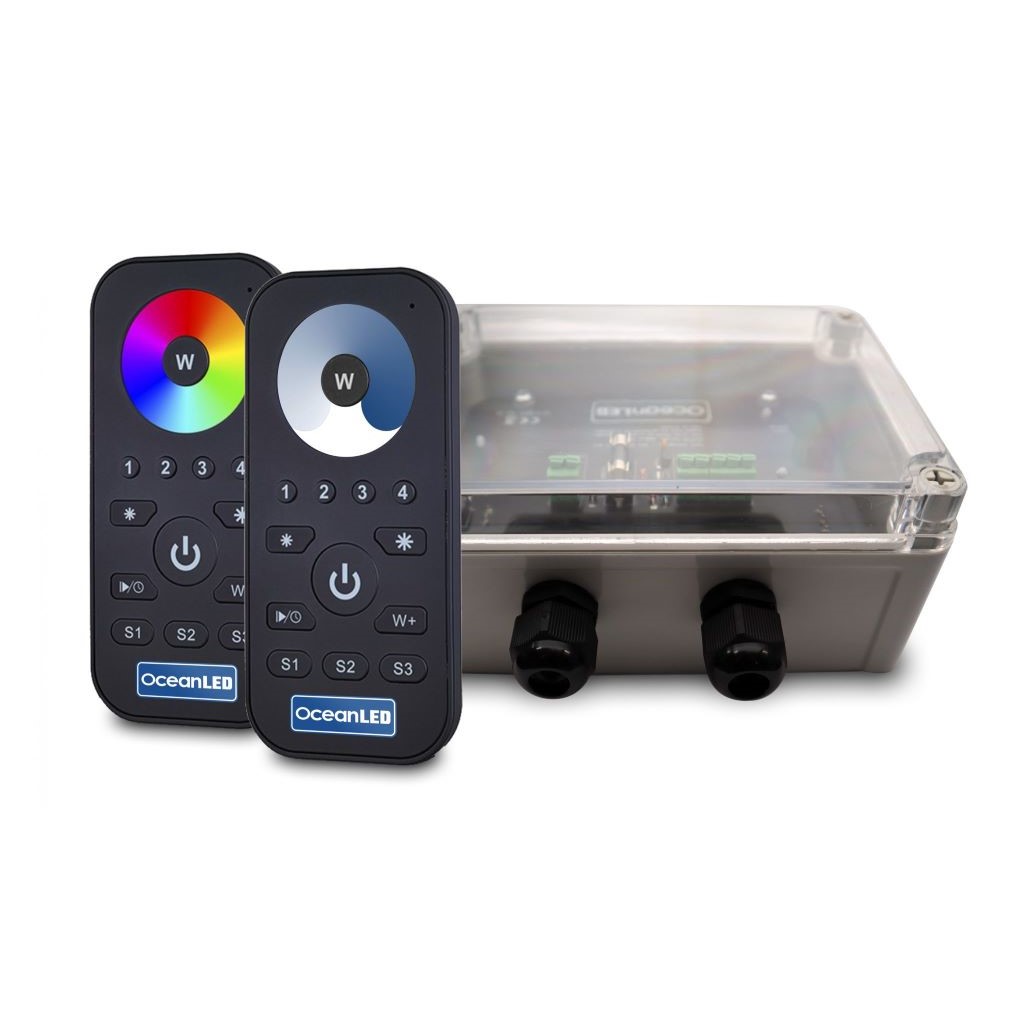

Ocean LED Underwater Light – Remote Control & DMX Receiver Pack

Description

Colours DMX or Dual Colour options

The OceanDMX RC allows you to remotely control the RGBW colour or dual colour LED lighting system installed on your boat via the DMX protocol (the lighting system must be DMX compatible).

The OceanDMX RC has 3 programmable scenes with up to 10 pre-set modes.

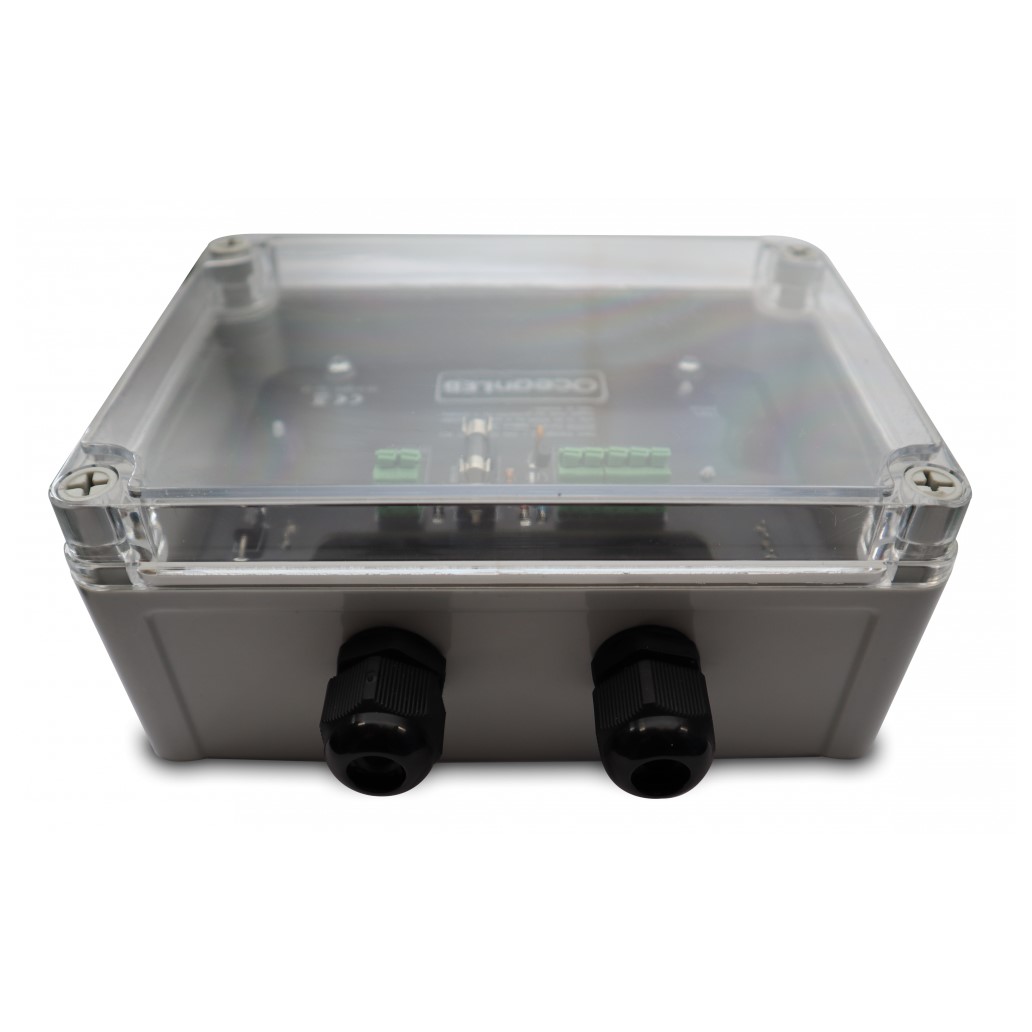

DMX Receiver

The OceanDMX RC Receiver connects to the remote via radio frequency (RC). The receiver is waterproof to IP68 certification, and has a range of up to 20m, depending on mounting location.

Up to 8 remotes per receiver

Use up to 8 different remotes to control your lights with just 1 receiver.

Up to four 3rd party zones

The OceanDMX RC has the ability to connect to 4 zones independently
(excluding X-Series), therefore you can control your transom lights independently from your port/starboard lights.

The OceanDMX RC can also be used with other 3rd party DMX systems, see examples below;

• Underwater lighting (Use separate zones for side/rear)
• Yacht signage
• Deck lighting
• Indoor lighting

Pack Includes

• 1 Multi-Colour LED Control
• 1 White LED Control
• 1 DMX Receiver

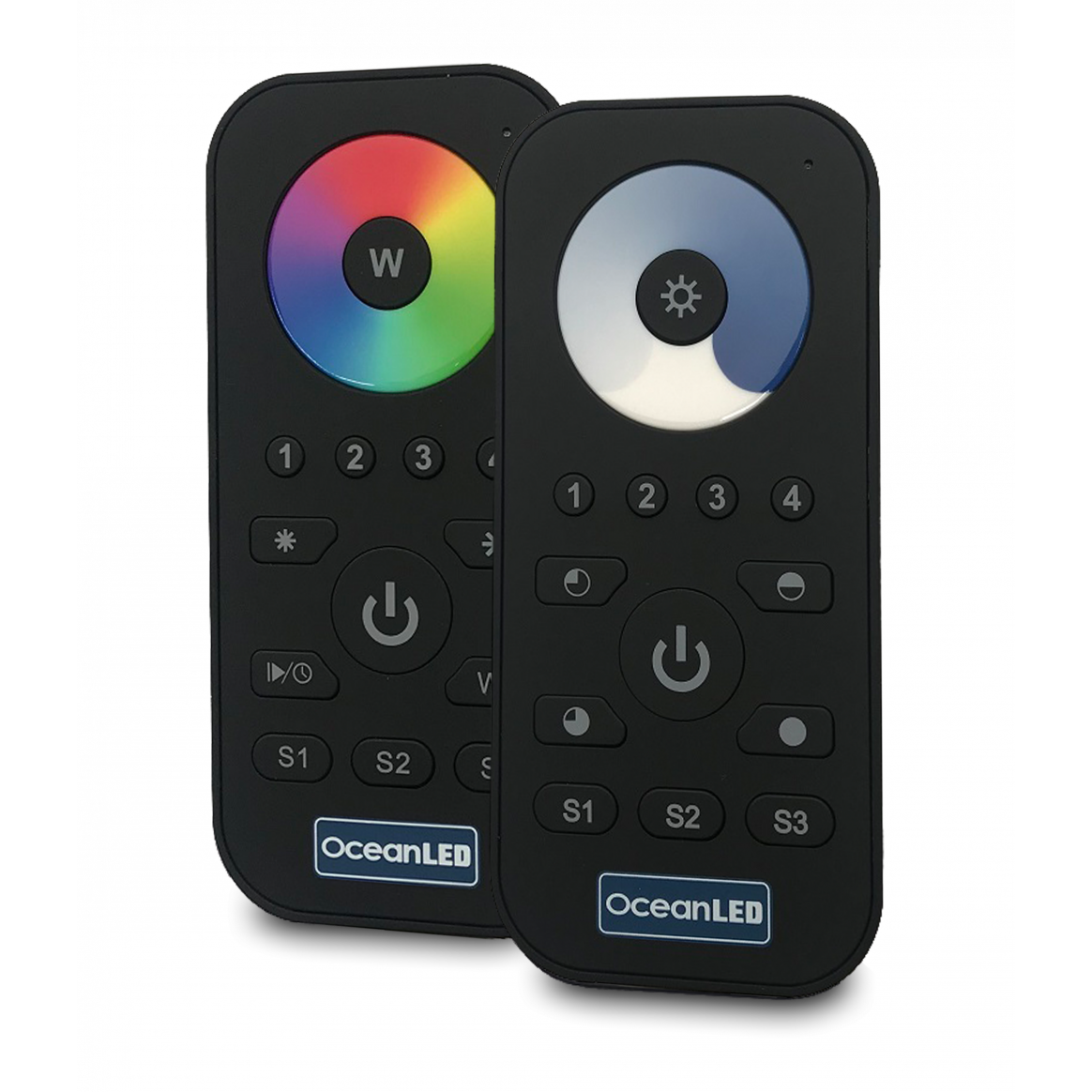

Remote Control Specifications

• x3 AAA Batteries (Not included)
• IP20 Rated
• 55mm x 120mm x 17mm

DMX Receiver Specifications

• 12/24v DC (9-32v DC)
• 200mA (Max)
• IP68 (2x M16 Cable Glands)
• 175mm x 125mm x 75mm
