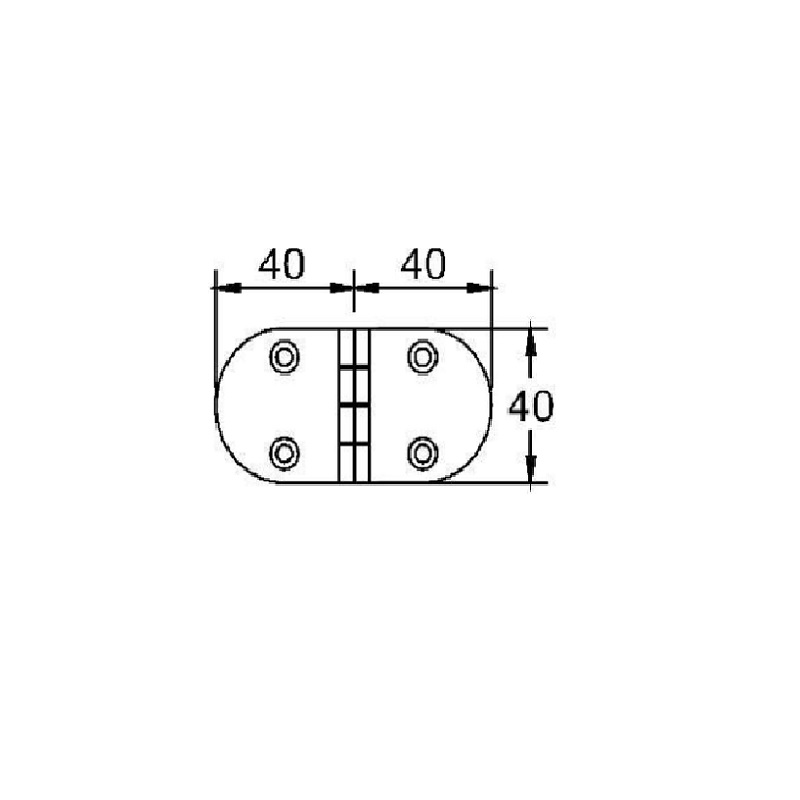

Heavy Duty Cast Hinge – 40 x 80mm

Description

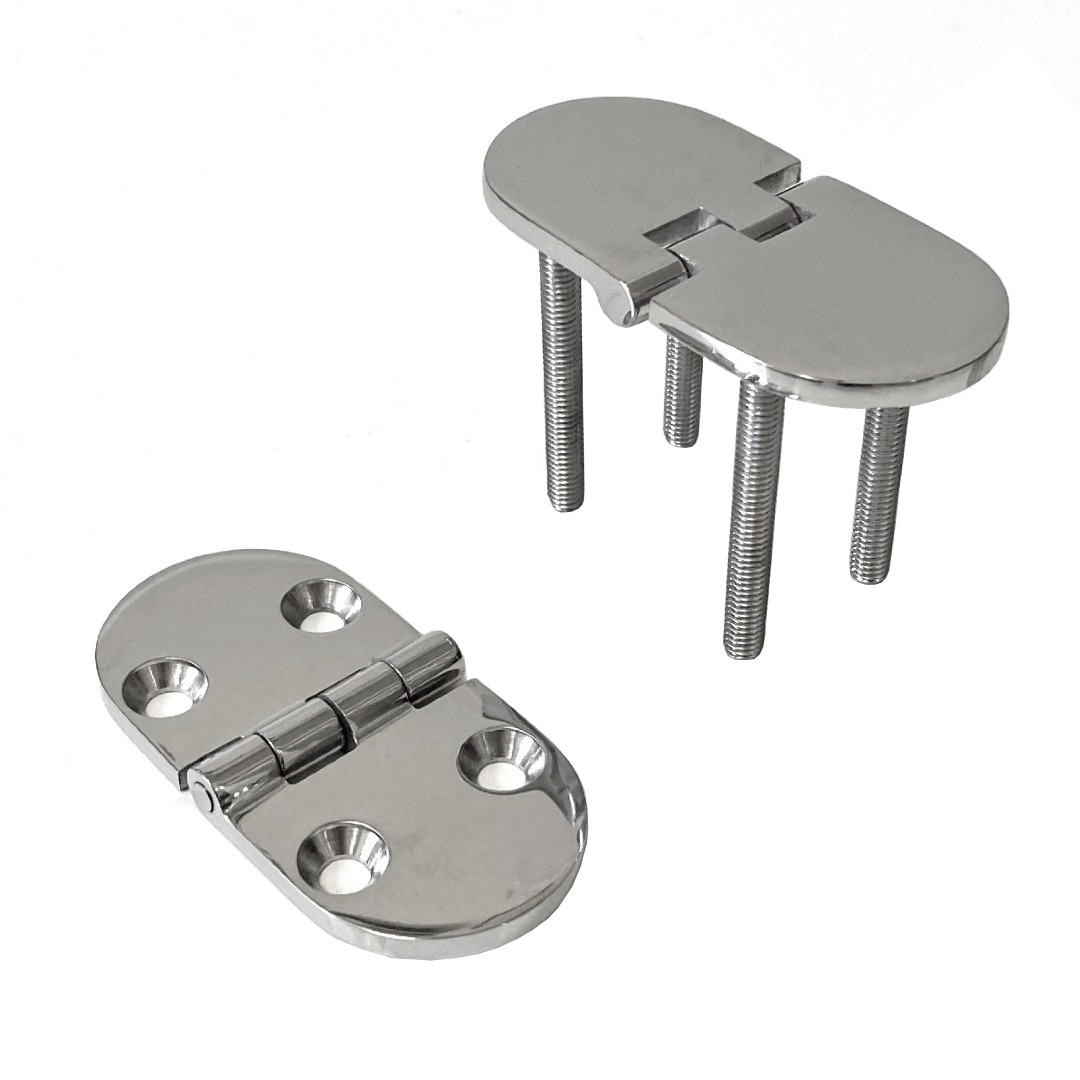

These heavy-duty hinges are manufactured from cast 316 Stainless Steel and are hand polished for an elegant finish. They can be supplied in four configurations. Top pin (hinge opens 180 deg.), under pin (hinge opens 95 deg.), countersunk (for surface mounting) or studs (for under mounting).
All Stud mounted hinges have an M6 Stud, whilst the surface mounted hinges require a #6 Countersunk Screw. Other combinations are available at special request. Please contact our office for further details.

10A-86334A – Under Pin, Countersunk – 40mm x 80mm

10A-86334B – Under Pin, Stud – 40mm x 80mm

49-86334C – Top Pin, Countersunk – 40mm x 80mm

99-86334D – Top Pin, Stud – 40mm x 80mm
