Aqua Signal Series 70 Single Tier – For vessels over 20 Metres (65 Feet). 3nm Visibility (6nm for Masthead version).
Takes x2 P28 Bulb’s (24/110/230v) which is not included, please order bulb separately. May also be used on inland waterways without limitation of ship´s length. (H) 550mm x (W) 220mm
Housing
Unbreakable and extremely reliable Polycarbonate, glass fibre reinforced, other components of non-corrosive materials. Housing self-ventilated. Nonmagnetic, seawater resistant Housing colour Mat black
Electric
Main lighting (upper unit) and spare lighting (lower unit) each come with 1.5 m special connection cable 2 x 1.5 mm², self-protective insulation, class II.
Cable Insert
2 special cable glands metric pressure screw M24 x 1.5 with protection against buckling
Mounting

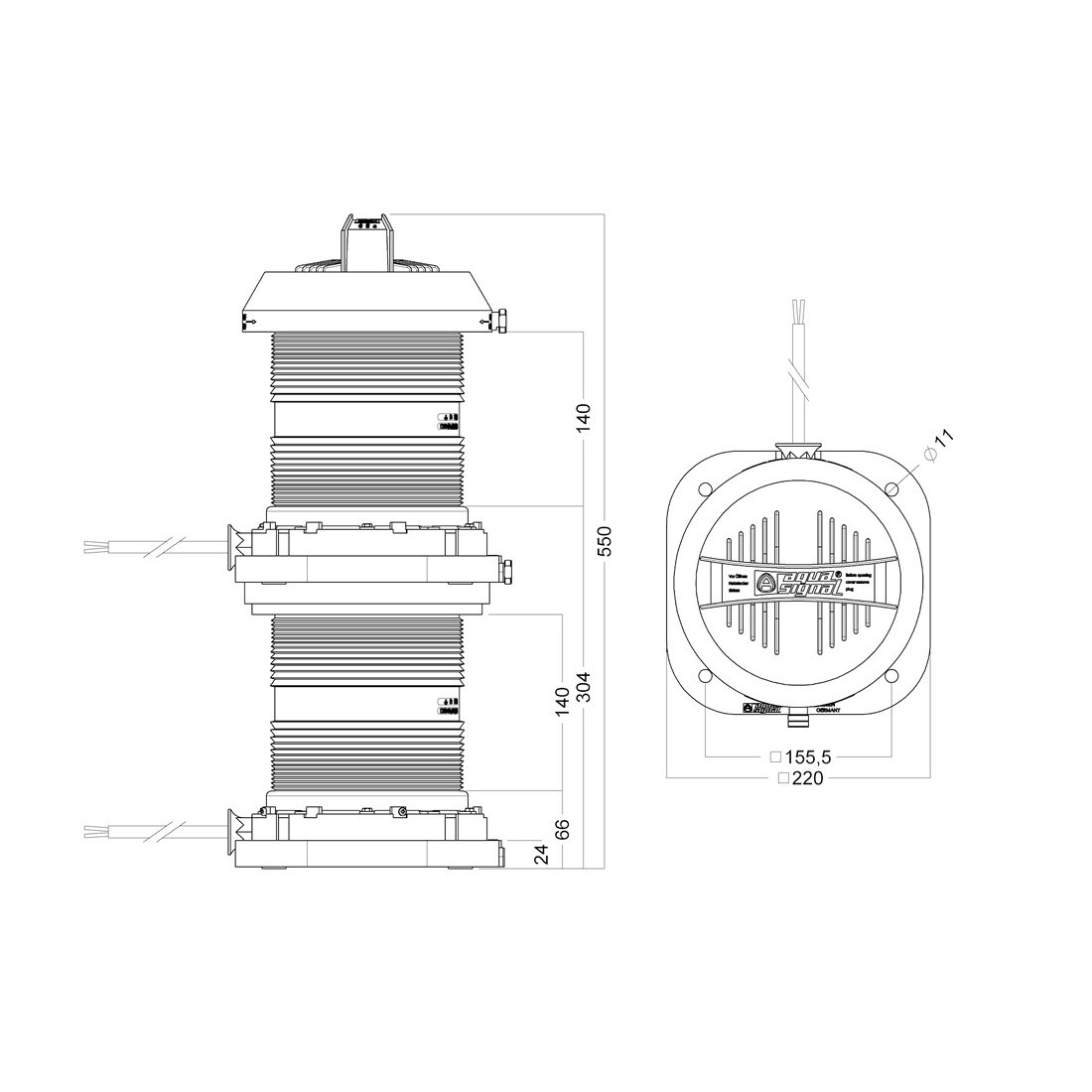

Base flange attachment, 4 screws (not included). All-round lights may also be hoisted. Additional mounting aids see drawing
Approvals
a) International according to IMO Colreg 1972, in Scandinavian countries too, in Germany through BSH, other countries in particular see list of approvals. Has Wheel Mark.
b) US-Coastguard, China Classification Society. These lights may only be used on ships flying the flags of the USA or P.R. China
Min. visibilities
3 n.m., masthead light 6 n.m
Optics
Seawater resistant, special plastic Fresnel lens
IMO / BSH / USCG / CCS / CE
EU Wheel Mk
| Type | 360 Deg Green, 360 Deg Red, 360 Deg White, 360 Deg Yellow, Masthead, Port, Starboard, Stern, Stern Yellow |
|---|---|
| Brand | |
| Voltage | |
| Housing | |
| Options | S70 Double Tier AR Green, S70 Double Tier AR Red, S70 Double Tier AR White, S70 Double Tier AR Yellow, S70 Double Tier Masthead, S70 Double Tier Port, S70 Double Tier Starboard, S70 Double Tier Stern, S70 Double Tier Stern Yellow |
| Mount | |
| Visibility | |
| Approvals | BSH, IMO, MED Wheel Mark, RMRS |
