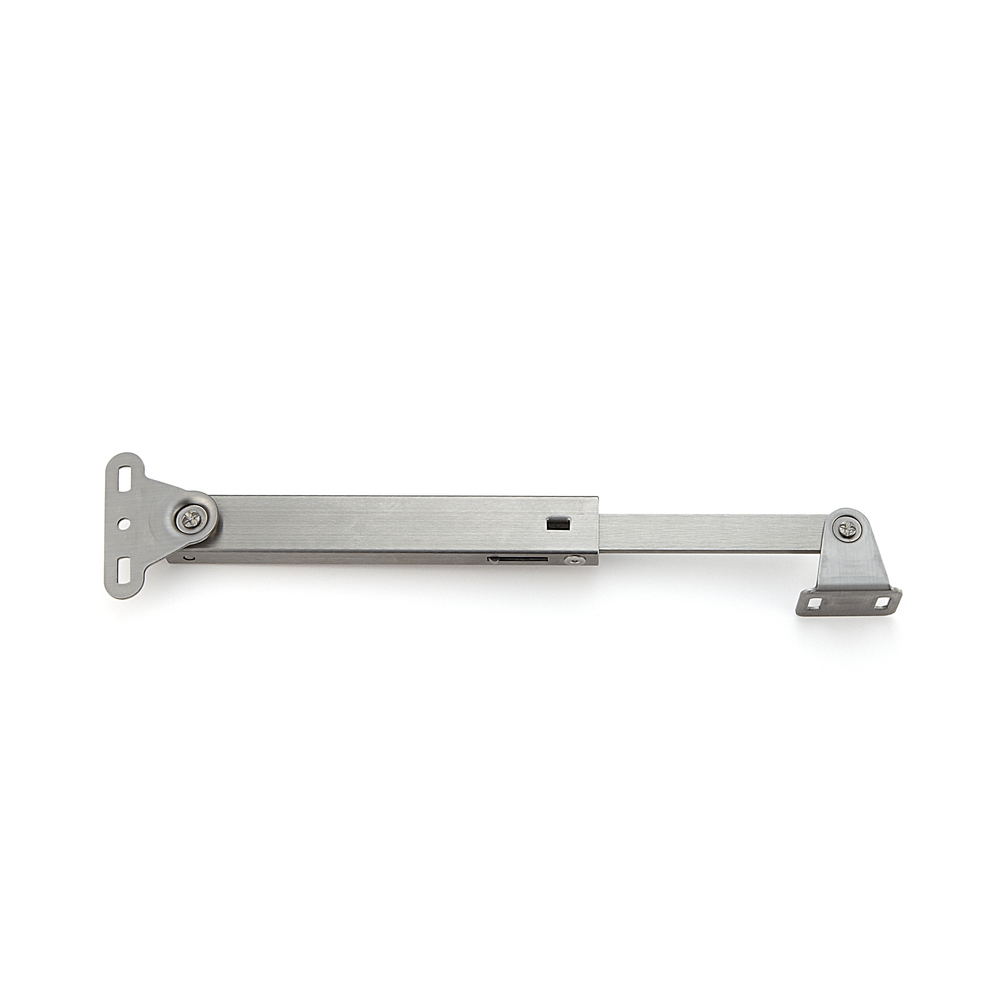

304 Stainless Steel Lift Stay

Description

When closed, the extendible section of the arm is stored inside the body, allowing the cabinet interior to be used effectively.

Only one stay is required per door flap. Non-handed. 250-350mm door height.

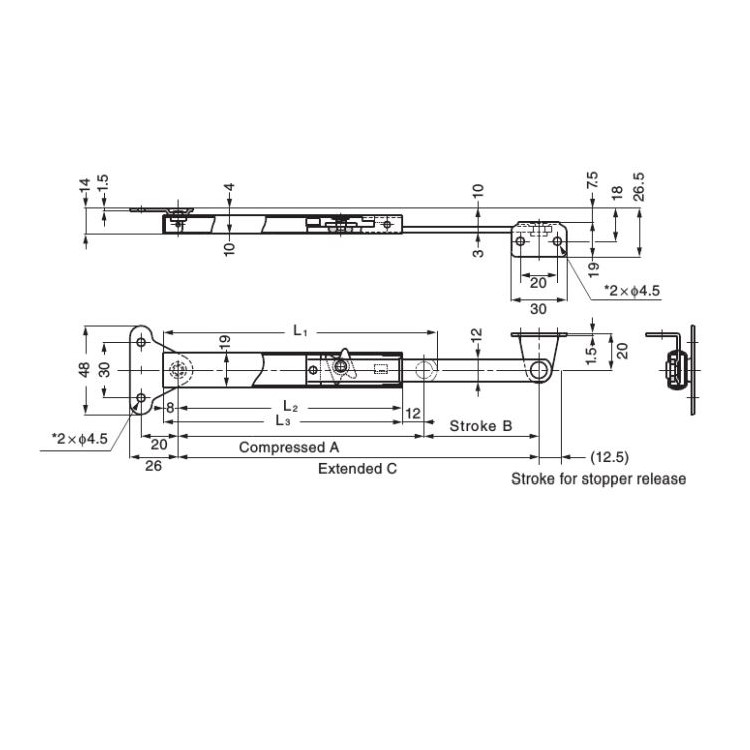

• L1 – 148mm
• L2 – 121mm
• L3 – 129mm
• A – 133mm
• B – 62mm
• C – 195mm
